Constant Voltage Transformer(CVT)
Sailent Features
  • »   Extended input voltage range i.e. 150V - 290V AC to cover extremely wide voltage fluctuations for loads less than the rated load.
  • Inbuilt current limiting and short circuit protection
  • Floating output (optional)
  • Very high isolation between input and output
  • Inbuilt transient and spike supresser. No spark or interruption in the output
  • Capacity to be overloaded for short periods
  • Output voltage corrected within 20 to 30 milli-seconds, for a change in line voltage within the rated limits
  • Output sensitive to frequency variation and varies 1.5% with 1% change in frequency
  • Storage of energy for line loss up to 3 msec. at typical loads
  • Sleek & attractive, blends with every decor
Technical Specifications
  Input Voltage   : 180 - 260V AC
   Output voltage    : 220/230 V AC ± 1%
   Line of Frequency    50 Hz ± 1%
   Efficiency    90% (Approx) on full load
   Output Wave Form    Sine Wave
   Type of Transformer    Ferro Resonant
   Wave Form Distortion    5% (Approx) at full load
   Ambient Temperature    -20°C to 50°C
   Temperature rise    55°C
For Computers, Data Processing Equipments, Bio-medical Equipments, T.V., VCR, Fax Machines, Teleprinters, Electronic Typewriters, C.N.C. machines, Phototype setting machines, Telex machines, EPABX Systems etc.

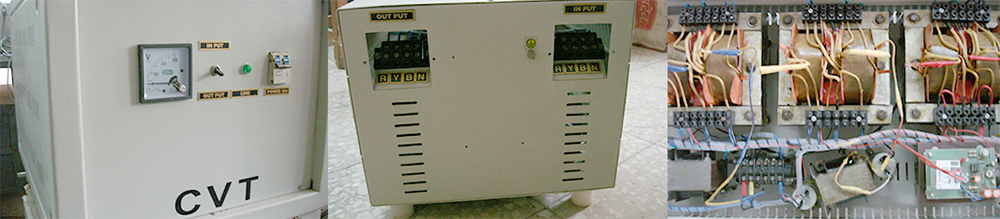

Constant Voltage Transformer (CVT)

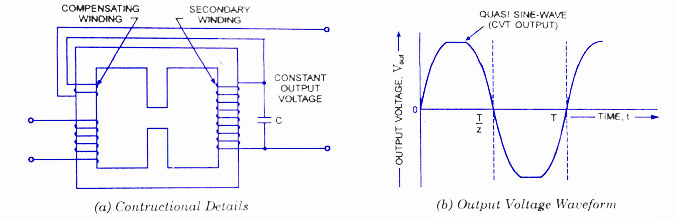

With the popularisation of PCs, the constant voltage transformer(CVTs) have also become equally popular. The CVT is simply a magnetic transformer of a special construction that has a capacitior connected across the secondary winding of the transformer. In an ordinary transformer, the primary and secondary windings are wound near each other so that whenever there is a change of voltage across the primary there is a corresponding change in the secondary voltage depending upon the ratio of the turns on the two windings. However, in the CVT the primary and secondary windings are wound seperately from each other, as illustrated in figure. To set up field in between the coils, a seperate shunt path is provided between the two windings but an airgap is formed in the shunt path. A capacitor is connected across suitable tappings of the secondary winding. The constructional details of a CVT are shown in the figure.

Operation Of CVT

The portion of the magnetic core over which the secondary winding is wound is saturated, while the portion over which the primary is wound is not saturated. A capacitor is connected across the secondary winding to tune out the output at a frequency very close to 50 HZ. This capacitor also makes the current in the secondary windings to increase which helps in the saturation of the secondary flux. Since the secondary ac flux is restricted to a saturated value for a large range of the input voltage(170-270 V), a constant voltage is available across the secondary winding. The output voltage will not be of a pure sinusoidal waveform but will be an approximate sinewave with the peaks flattened approaching a square wave. Output voltage waveform of a CVT is shown in figure. In figure, a compensating winding is shown connected in series to the secondary to improve the CVT performance.

If a CVT is placed at the output of a square wave inverter(in the UPS), care must be taken to control the frequency of the inverter, since the CVT is sensitive to the frequency of its input supply.

The reason we use a CVT and not a voltage stabilizer for computer applications is that in the voltage stabilizer relays are present and when these relays operate(switch), the output voltage may be interrupted for a short time. Such a transient may not be desirable for computers which may cause the computer to reboot, Also, the CVT provides a clean spike-free output voltage. The voltage regulation possible in a CVT also is good.

The input voltage ranges 170 to 260 V and output regulation is 230+-2% at no load to full-load. Distortion-approximately 5% under full load conditions. Rating of 50,150,250,350,500,750,1000,2000 VA.

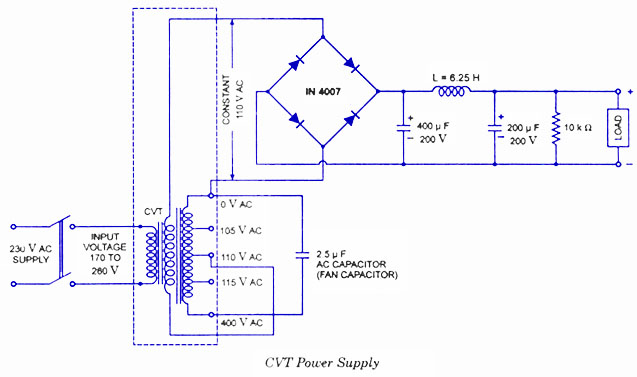

A practical circuit of a CVT power supply is given in figure.
