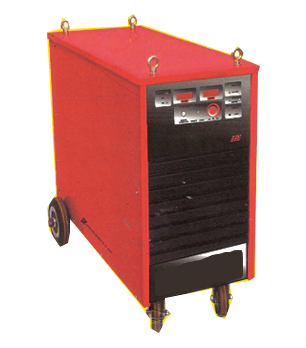

Plasma Cutting Machine
Description
Consist of Power source with controls, Water re circulating system if required and a well designed Torch. The basic principle is that the arc formed between the electrode and the work piece is constricted by a fine bore, copper nozzle. This increases the temperature and velocity of the plasma emanating from the nozzle. The temperature of the plasma is in excess of 20 000°C and the velocity can approach the speed of sound. When used for cutting, the plasma gas flow is increased so that the deeply penetrating plasma jet cuts through the material and molten material is removed in the efflux plasma.

Applications
  • Can cut all electrically conductive metals like S.S, C.S, Copper, Aluminium, Inconel, Titanium etc.
  • Optimized design of fully copper wound oil cooled transformer with high quality CRGO laminations to ensure low power consumption at 100% duty cycle.
  • Step controlled power for high capacity machine for extended power saving.
  • High open circuit voltage to accommodate easy arc striking. Fully protected power source against voltage fluctuation & overload added with complete safety interlocking for torch protection against air and water failure.
  • Easy to operate and maintain 90° torch head for operator's convenience
  • Highly improved air swirling offers higher cutting capacity at low power output.
  • Contemporary torch design guarantees long life of consumables viz. electrode and nozzle.
  • Almost vertical, dross free cuts with minimum kerf width.
  • Standard Torch cable length of 7 meters with option to extend upto 30 meters.
  • Robust design with powder coated chassis ensures long life in site conditions also.
